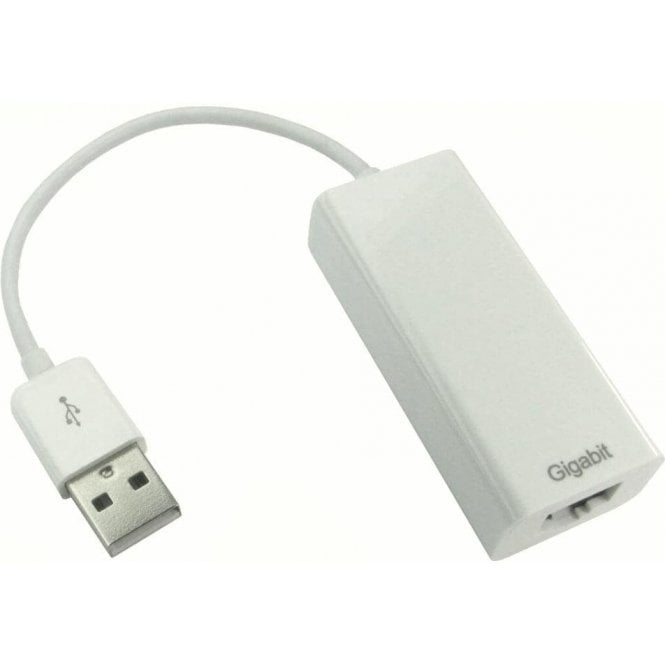

USB 2.0 Gigabit Ethernet Adapter

The Gigabit USB 2.0 Ethernet adapter converts a USB port into a 10/100/1000 Base-T Ethernet port. It enables low cost and affordable Gigabit Ethernet network connection to any PC, laptop or embedded system by using your existing USB ports.

Please note: This adapter does not support PXE boot

• Integrates on-chip USB 2.0 PHY and controller compliant to USB Spec 2.0, and 1.1
• Supports USB Super/High/Full Speed modes with Bus-power Self-power device auto-detect capability
• Supports IEEE 802.3, 802.3u and 802.3ab
• Supports parallel detection and automatic polarity correction
• Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading
• Supports TCP Large Send Offload V1
• Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
• Supports IEEE 802.1P Layer 2 Priority Encoding and Decoding PHY loop-back diagnostic capability
• Supports Wake-on-LAN Function
• Supports suspend mode and remote wakeup via link-change, Magic Packet, Microsoft Wakeup Frame and external wakeup pin
• Supports up to Windows 11 and mac OS 12
• ASIX AX88178A chipset
