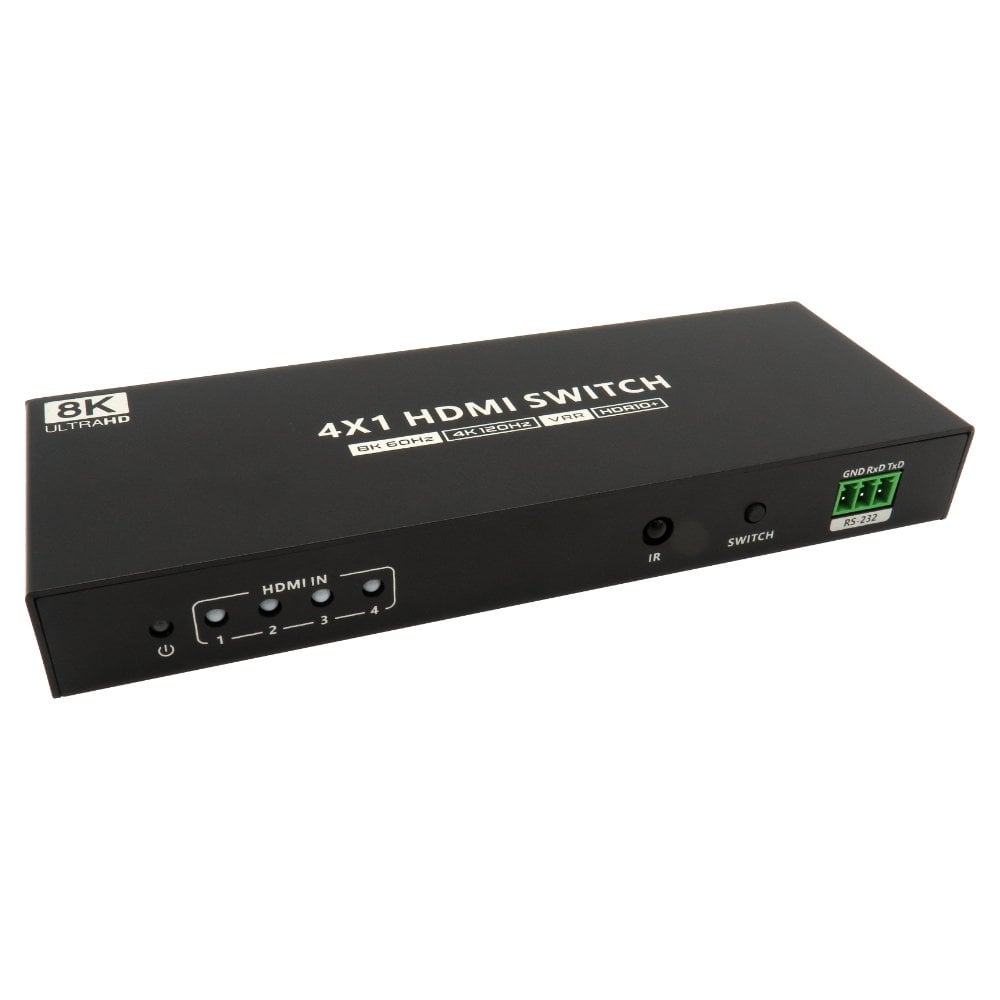

Four Port HDMI v2.1 Switch

The HD8K-SWB4 HDMI™ v2.1 switch supports 4 HDMI™ signal inputs and 1 HDMI™ signal output. The highest supported resolution is 8K @ 60Hz and is backward compatible.

A variety of control methods (IR remote control and RS-232 switch) can easily switch the content of the 4 HDMI™ signal sources to the display.

HDMI™ Switches are widely used in security monitoring, media entertainment and broadcasting.

• HDMI Version: HDMI 2.1, backwards compatible
• Supports HDCP 2.3
• HDMI Inputs: 4
• HDMI Outputs: 1
• Transmission Speed: 48Gbps
• Video Bandwidth: 1200MHz
• Supports EDID passthrough
• Supports 3D, VRR (Free Sync and G-sync)
• Supports HDR10+, Dolby Vision, HLG, YUV4:4:4

Supported Audio Formats
S/PDIF Output:

• Dolby Atmos
• Dolby True HD
• DTS:X
• DTS-HD

HDMI Output:

• Dolby Atmos
• Dolby Digital 7.1CH
• Dolby True HD
• DTS:X
• DTS-HD
• LPCM 7.1CH

Supported Video Resolutions

• 7680 x 4320 @ 60Hz
• 4096 x 2160 @ 120Hz
• 3840 x 2160 @ 120Hz
• 3440 x 1600 @ 60Hz
• 3440 x 1440 @ 60Hz
• 2560 x 1600 @ 60Hz
• 2560 x 1440 @ 120Hz
• 2560 x 1080 @ 60Hz
• 2048 x 1080 @ 60Hz
• 1920 x 1440 @ 120Hz
• 1080p @ 120Hz
• 1080i @ 60Hz
• 720p @ 60Hz
