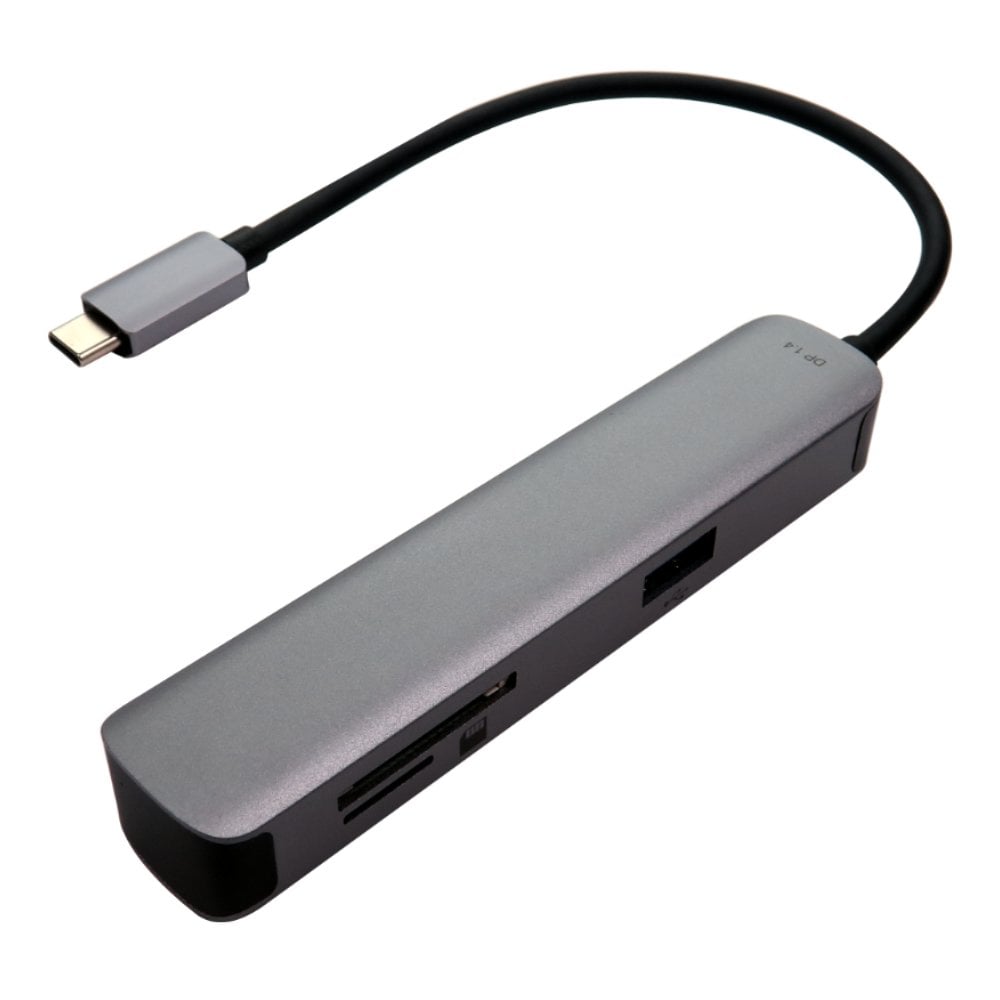

The USB3C-HDMI-PHUB2CRA is a 5-in-1 USC-C adapter with 1x HDMI, 2x USB Type A, 1x SD and 1x TF port. It is the ideal solution for adding additional ports to a USB-C or Thunderbolt 3 host (PC / Laptop / Mobile phone), it is especially useful for hosts with a single Type-C port.
This hub adopts DP1.4 Alt-mode, enabling it to output HDMI video with maximum resolution of 4k at 60Hz whilst simultaneously transferring USB 3.1 data at 5Gbps.
Code:
Slim compact aluminium design
Designed for DP Alt-mode supported Type-C and Thunderbolt3 hosts (PC, laptop, mobile phones)
Supports DP1.4 Alt-mode
Supports DSC 3:1, HBR3 with 8.1Gbp per lane
Supports a maximum HDMI resolution of 4K / 60Hz
Supports HDR
Supports HDCP2.2 & 1.4
Support SD3.0 UHS-I with max 104MBps
Supports USB3.2 Gen.1 with a maximum 5Gbps data transfer speed
USB Bus powered
1x HDMI
Supports HDMI max 4K/60Hz, 8bit with max 18Gbps
Supports RGB 4:4:4, YCbCr 4:4:4 ,4:2:2 ,4:2:0
Supports 8bit/10bit deep colour
Supports HDR
Supports HDCP2.2 & 1.4
Note: To achieve the maximum 4K / 60Hz, the host PC must support DP1.4 Alt-mode; if the host supports DP1.2 Alt-mode then the maximum resolution will be 4k / 30Hz due to the bandwidth limitation.
2x USB-A Female
Compliant with USB3.2 (Gen1) it has a maximum 5Gbps data transmission, backwards compatible with lower versions
Max 900mA downstream charging per port (the actual downstream charging power depends on the charging ability of the host)
Note: To guarantee that both USB Type A ports achieve optimal performance, it is suggested not to connect 2 high-power devices, such as hard drives.
